BB145HS

Seamless Power, Hot-Swap Technology & Rugged Reliability

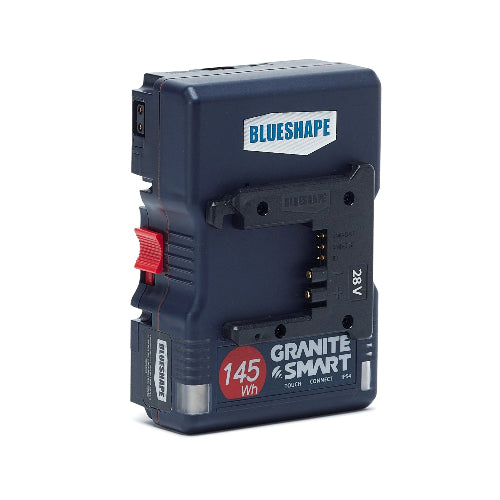

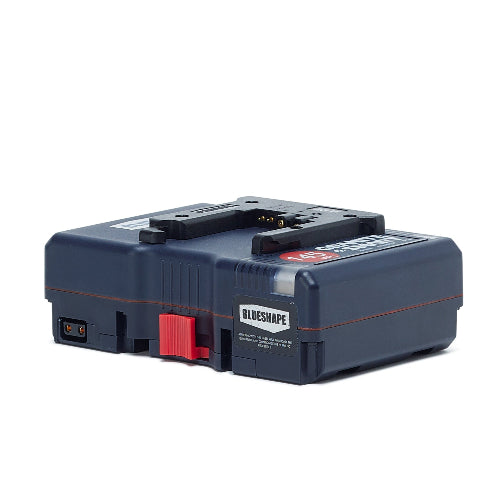

The BLUESHAPE BB145HS is a stackable, hot-swap B-Mount battery designed for uninterrupted camera operation. Built with GRANITE shockproof construction and IP54 rainproof protection, this rugged and reliable battery is ideal for demanding film, broadcast, and live production environments.

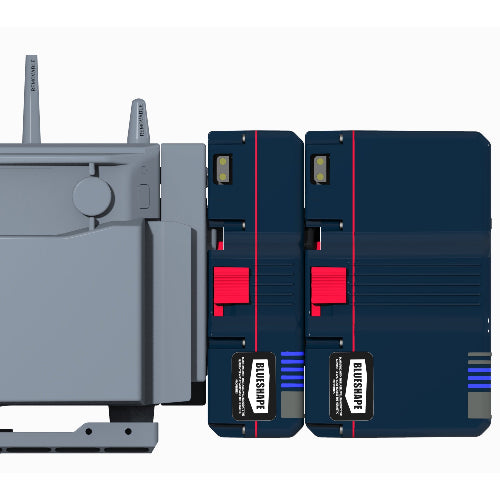

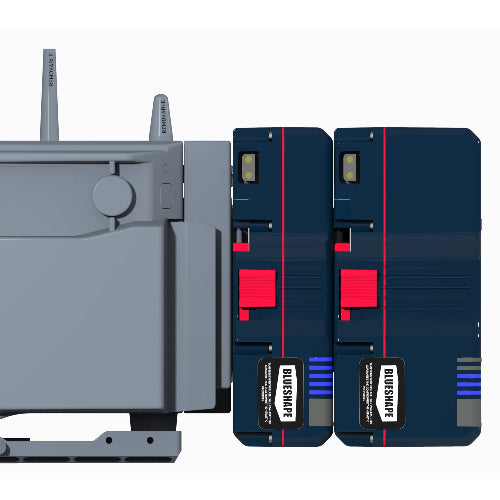

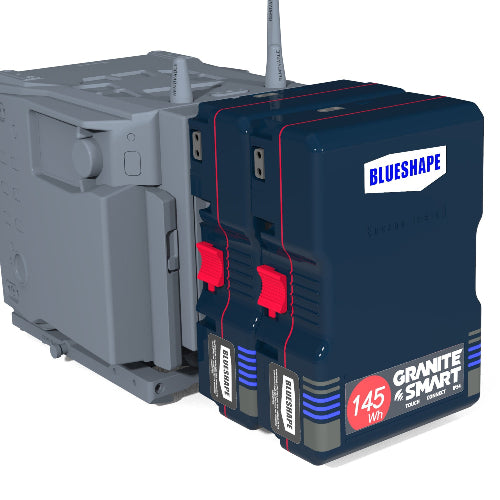

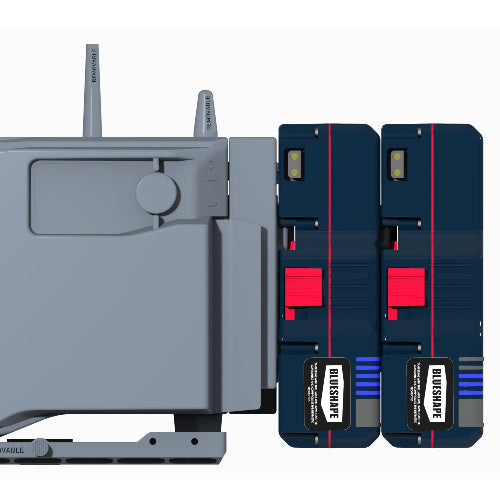

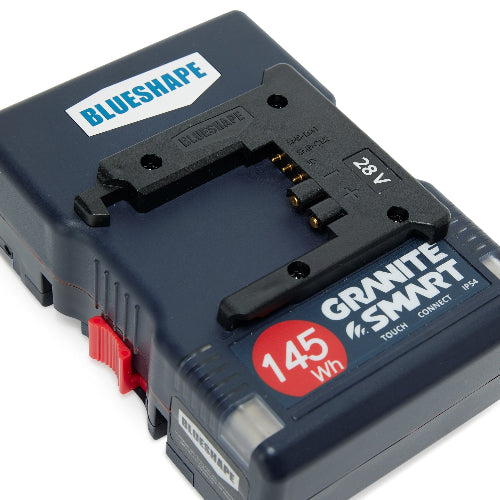

With an integrated B-Mount plate on top, the BB145HS allows another battery to be stacked. The external battery becomes the primary power source, and when removed, the BB145HS seamlessly takes over, preventing any power interruption. Its robust build is engineered to support larger batteries like the BB290 and BB435, ensuring extended shooting times.

Key Features:

Hot-Swap Power Solution – Ensures continuous operation by automatically switching between stacked batteries.
Stackable B-Mount Design – Supports larger batteries (BB290 & BB435) for extended runtime.
GRANITE Shockproof Construction – Ultra-durable build for high-impact protection.
IP54 Rainproof Rating – Weather-resistant, perfect for outdoor shoots and extreme conditions.
Next-Gen 21700 Li-Ion Cells – High-energy cells for efficient power delivery.
LED Touch Control – Instant battery charge status visibility with adjustable brightness.
USB-C PD Power & Data Port – Provides up to 65W output for charging devices & monitoring battery status.
GRANITE SMART Wireless Connectivity – Monitor battery status remotely via smartphone or tablet.
IATA Travel Compliant – Safe for carry-on luggage (max 2 per passenger).

Why Choose the BLUESHAPE BB145HS?

The BLUESHAPE BB145HS B-Mount Battery is the ultimate power solution for high-demand cinematography, providing hot-swap technology, rugged durability, and seamless wireless monitoring. Whether on set or in extreme shooting conditions, the BB145HS ensures uninterrupted performance.

Stay powered with the BLUESHAPE BB145HS – Order today!

• Nominal Voltage: 28.8V (voltage range: 21.0V ~ 33.6V)
• Nominal capacity: 5Ah - 145Wh
• Max current draw: 20A
• Solid and robust shockproof and rainproof construction IP54 certified
• Two 5x RGB LED array located in the corner of the housing to guarantee maximum visibility at 270 degrees around the battery, even if the battery is installed upside down on a stabilizer or other devices.
• The LEDs are activated by touch-sensitive switches that allow for several unique functions such as setting the LEDs to always on for an immediate and remote glance at the battery charge status during use, or varying the intensity of the LEDs according to the needs of the shooting environment.
• The battery is further enhanced with more power options:
  • 2x 16V D-Tap for a combined max output of 80W
  • 1x USBC-PD 5V~20V up to 65W useful to power an array of devices

• The USB-C output is also equipped for the useful and unique personal SMARTMon function that provides each user with the ability to interface with their battery via a simple USB-C data cable to monitor and control its functions in direct connection with our customer service
• The new GRANITE SMART wireless connectivity boosts the usage in the field: compatible with most smartphone and tablets, connects immediately out of the box and helps to control all the batteries in real time during use without lengthy pairing operations
• The new B-mount range is ready for use with the optional BSAFE, a market first metal bracket that secures the battery to the safety cable system when used on overhead equipment.
• Size: 155mm x 105mm x 62mm (6.1" x 4.14" x 2.4")
• Weight: 0.9 Kgs (1.98lbs)
