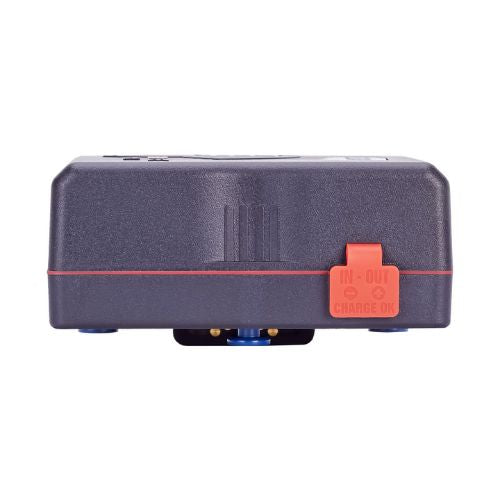

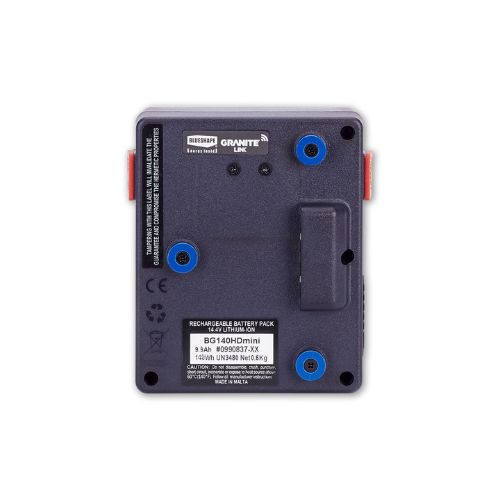

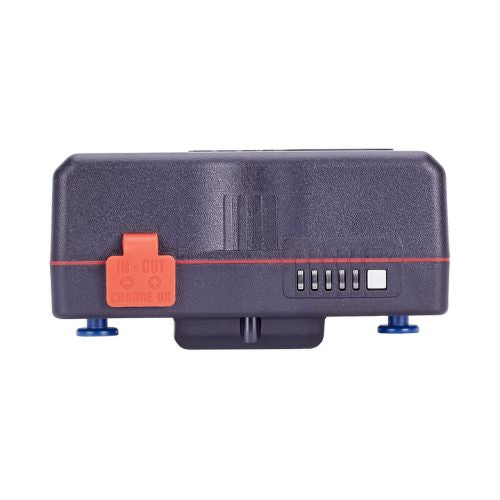

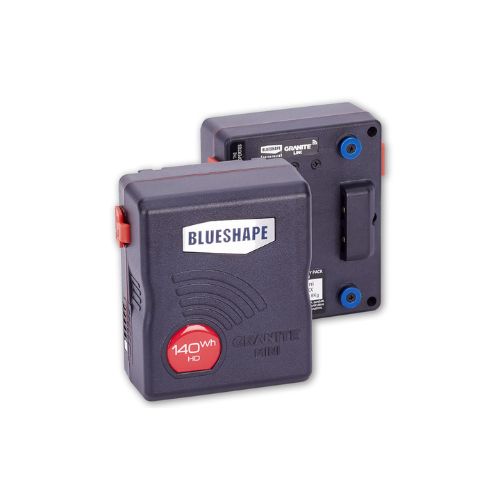

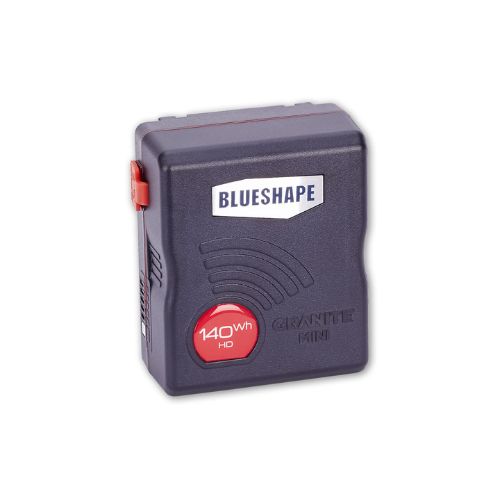

The BLUESHAPE BG140HDmini is a powerful 140Wh 3-Stud lithium-ion battery, engineered for cinema cameras, broadcast equipment, and high-drain applications. Despite its compact size, this battery delivers exceptional power efficiency and extended runtime, making it ideal for demanding production environments.
Built with GRANITE shock-proof construction and IP54-rated weather resistance, the BG140HDmini is rugged, durable, and designed for harsh on-set conditions. Featuring dual D-TAP outputs, it enables seamless accessory power, while GRANITE SMART wireless connectivity provides real-time battery monitoring via the BLUESHAPE Granite Link App.
Key Features:
140Wh High-Capacity Battery – Long-lasting power for cinema & broadcast cameras.
GRANITE Shockproof & IP54 Weatherproof – Built for extreme durability.
Dual D-TAP Outputs – Power multiple accessories with ease.
Wi-Fi Monitoring – Check battery status via the BLUESHAPE Granite Link App.
IATA Flight-Safe – Approved for carry-on travel (max 2 per passenger).
The BG140HDmini delivers exceptional power, rugged reliability, and innovative connectivity, making it the perfect solution for professional filmmakers and broadcasters.
Upgrade your power solution with the BG140HDmini – Order yours today!
- Dimensions: 95 x 116 x 58 mm (3.74" x 4.56" x 2.28")
- GRANITE LINK, Wi-Fi enabled remote control
- 2 Auxiliary D-Taps (nominal 14.4V) provide maximum power, up to the battery permissible current draw. Both can be used as a charging inlet
- GRANITE construction, robust, shockproof and IP54 certified
- Fully compatible with original 3-Stud chargers
- Nominal Voltage: 14.4V
- Voltage range: 10.0V ~ 16.8V
- Nominal Capacity: 9.9Ah, 143Wh
-
Max. discharge current: 12A
- Weight: 0.89Kg (1.98lbs)
1x BG140HDMini
1x USB Cable
User Guide & Quick Start Manual
