The NETRON RDM 10 is a powerhouse hybrid device, setting a new standard for DMX distribution. Designed by Obsidian Control Systems, it combines a 10-port RDM splitter, dual DMX inputs, and a 2-universe Art-Net/sACN gateway into a single, rackmountable unit. Whether you’re managing complex touring rigs, theatrical installations, or fixed venue networks, the RDM 10 provides unmatched flexibility, control, and reliability in one compact solution.
Built to simplify and streamline data management in professional lighting systems, the RDM 10 includes 99 internal cues with customizable fade and delay times, contact closures for external triggering, and a 1.8” OLED display for intuitive local navigation. With both front and rear DMX inputs, configurable output settings, and web-based remote configuration, this device is engineered for rapid deployment and robust performance.
Key Features:
-
10 assignable opto-isolated DMX outputs
-
Dual DMX inputs with signal backup and merge options
-
Integrated 2-universe Art-Net and sACN node
-
99 internal cues with customizable timing
-
Trigger control via contact closures (10x terminal block)
-
Front-panel OLED screen with rotary encoder for easy setup
-
Remote configuration via internal webpage
-
Powder-coated aluminum 1U rackmount housing
-
DMX refresh rate configuration
Connectivity:

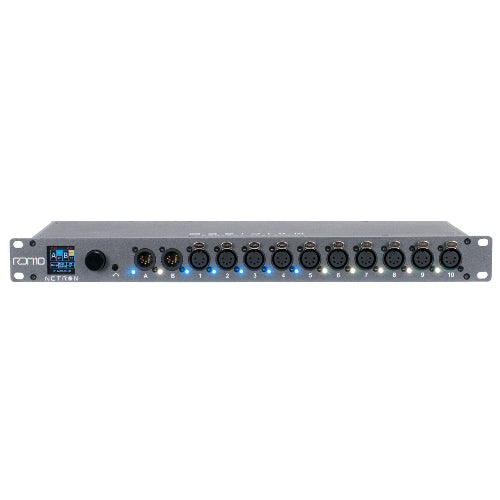

Front Panel:

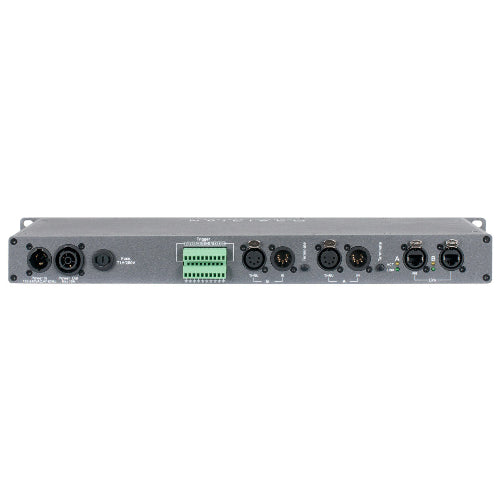

Rear Panel:
-
(2) 5-pin DMX Inputs (parallel with front)
-
(2) 5-pin DMX Through Ports
-
(2) Locking RJ45 Ethernet Ports (Art-Net/sACN)
-
(10) Contact Closures (Terminal Block)
-
Locking Power In/Thru (AC and POE)
Why Choose the NETRON RDM 10?
Whether you're building a scalable lighting data network or need a reliable show backup with flexible cue control, the NETRON RDM 10 delivers professional-grade performance with an intuitive interface and rock-solid build quality. It’s the ideal choice for high-demand productions requiring a multi-functional DMX distribution solution.
