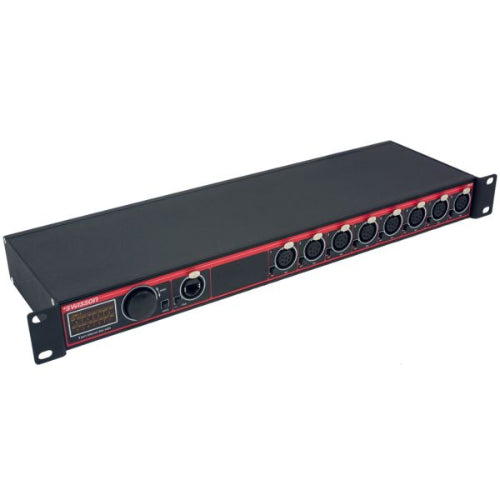

Swisson XND-8R5 8 Port Node

Reliable DMX Distribution for Large-Scale Lighting Setups

The Swisson XND-8R5 is a powerful 8-port rackmount Ethernet to DMX converter, designed to distribute eight independent DMX universes through 5-pin XLR outputs. This professional-grade device seamlessly bridges Ethernet-based lighting control protocols, including Art-Net (v1-4) and sACN, with traditional DMX systems, making it an essential tool for live events, theater productions, architectural lighting, and large venue installations.

Key Features:

8 Optically Isolated DMX Outputs – Ensures clean signal distribution while protecting fixtures from electrical interference.
Supports Art-Net & sACN – Compatible with modern lighting control systems for seamless network integration.

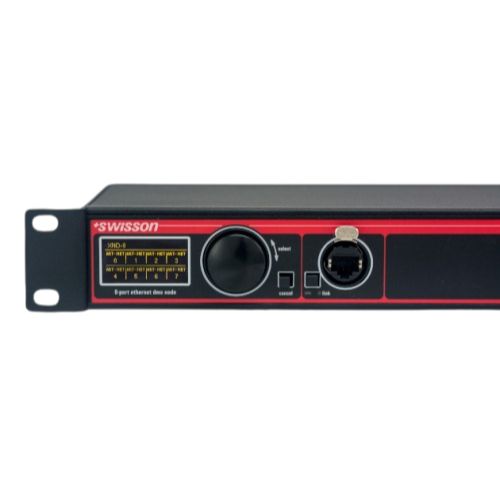

Web Interface & OLED Display – Intuitive on-device controls and remote configuration via a web browser.
Automatic DMX Merging – Allows multiple controllers to send data to the same universe without conflicts.
RDM Support – Enables remote device monitoring and configuration of connected fixtures.
Rackmount Design – Compact 1U chassis (19 x 5.35 x 1.75 inches) for easy rack integration.

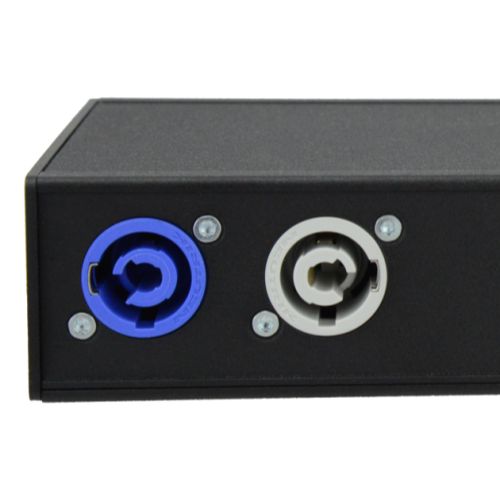

Neutrik powerCON Input/Output – Reliable 100-240V AC power supply for global compatibility.
Wide Operating Range – Built to handle extreme conditions (-22°F to 122°F).

The Swisson XND-8R5 simplifies DMX distribution while offering industry-leading reliability, making it the go-to choice for lighting professionals managing complex setups.

• Product Type: Ethernet to DMX Converter
• DMX Universes: 8 Independent DMX Outputs
• DMX / RDM Compliance: ANSI E1.11 (DMX), ANSI E1.20 (RDM on output ports)
• Network Protocols Supported: Art-Net (Versions 1-4), sACN, sACN Draft Version (v0.2)
• Ethernet Connectivity: 10BASE-T / 100BASE-TX, Auto Negotiating, Auto MDI-X
• Power Input: 100-240V AC
• Typical Power Consumption: 11W

Environmental & Physical Specifications

• Ambient Operating Temperature: -22°F to +122°F (-30°C to +50°C)
• Dimensions:
  • Box Version (XND-4B): 9.9 x 5.2 x 1.75 inches
  • Rackmount Versions (XND-4R/8R): 19 x 5.35 x 1.75 inches
• Weight:
  • XND-4B: 2.43 lbs (1.1 kg)
  • XND-4R: 3.53 lbs (1.6 kg)
  • XND-8R: 4.0 lbs (1.8 kg)
• Mounting Options:
  • M10 Clamp Thread: Yes (Box Version Only)
  • Safety Eyelet: Yes (Box Version Only)

• 1x Power Cable
• 1x Rack Mounting Brackets
• 1x User Manual
