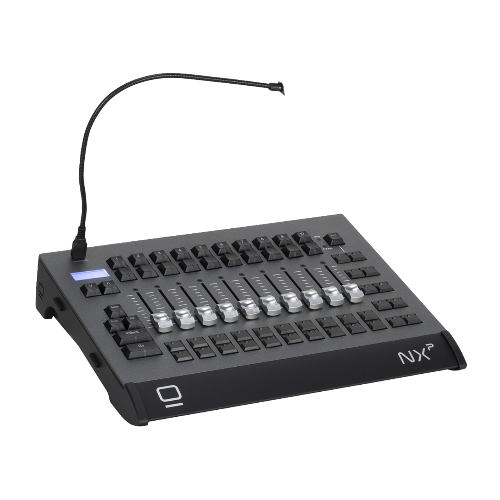

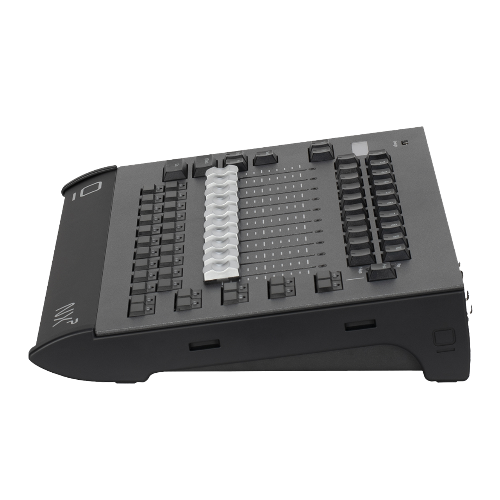

Obsidian Onyx NXP 10 Motorized Fader Playback Wing

The ONYX NX P is a compact, motorized playback wing built to expand your control surface and playback capabilities within the ONYX lighting control platform. Engineered as the perfect companion for the NX1 console or any ONYX PC system, the NX P delivers hands-on control with motorized faders, customizable function keys, and integrated DMX output—all in a sleek, portable form factor.

With 10 motorized playback faders and 10 multifunction buttons, the NX P offers instant access to up to 20 playbacks. Its full Master Go section, four DMX ports, and ONYX Nova+ license (enabling 4 universes plus MIDI/OSC/Timecode support) provide a professional-grade solution for scalable lighting control.

Whether you're expanding your control surface in a touring rig, integrating additional playbacks in a fixed installation, or building a powerful PC-based control setup, the NX P ensures smooth, intuitive operation with seamless compatibility across the ONYX ecosystem.

Key Features:

• 10 Motorized Playback Faders with 4 assignable buttons each

• 10 Playback / Function Hybrid Buttons

• Master Go Section with Go, Pause, Snap, and Release

• 4x Integrated DMX/RDM Outputs

• ONYX Nova+ License – 4 Universes with MIDI, OSC, and Timecode

• Seamless Integration with NX1, NXK, and ONYX PC Systems

• Magnetic Alignment System – Connect to either side of NX1 or NXK

• (4) 5-pin XLR DMX/RDM Outputs

• (1) USB-B 2.0 Port (PC or console connection)

• (1) IP65 Locking Power Input

Physical Dimensions:

• Length: 298.5 mm (11.75 in.)

• Width: 373 mm (14.7 in.)

• Height: 71 mm (2.8 in.)

• Weight: 4.5 kg (9.9 lbs.)

Electrical:

• Voltage: 100-240V, 50/60 Hz

• LED USB Desk Lamp

• Dust Cover

• USB 3.0 Recovery Drive

• IP65 Locking Power Cable
