Description

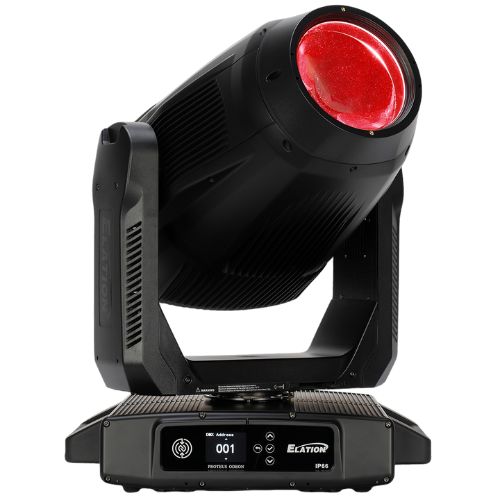

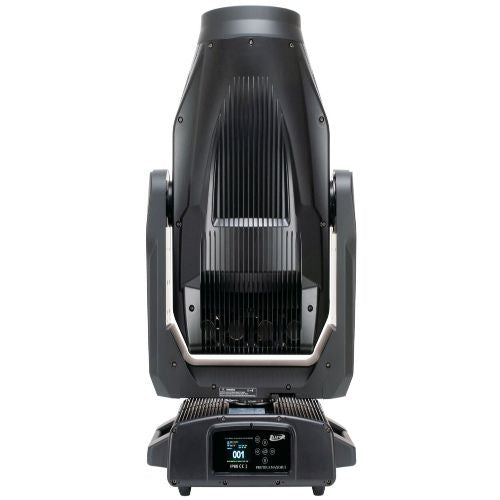

The Elation Proteus Odeon is a high-performance, IP65-rated LED profile luminaire designed for outdoor and indoor applications. Engineered for professional lighting environments, this fixture delivers unparalleled brightness, precision framing, and dynamic effects, making it ideal for concerts, theaters, architectural lighting, and large-scale productions.
With its 50,000-lumen output, advanced CMY color mixing, and full pixel control, the Proteus Odeon ensures maximum creative flexibility. Its motorized framing shutters, variable frost, and rotating gobos allow for detailed lighting designs with razor-sharp accuracy. Built with robust weatherproof construction, it withstands harsh conditions while delivering superior optical performance.
The Proteus Odeon is equipped with multiple control protocols, including DMX, RDM, and Art-Net, ensuring seamless integration into complex lighting systems. Whether used for permanent installations or on-the-road productions, its quiet operation, energy-efficient LED source, and cutting-edge optical design make it a top choice for lighting professionals.
Key Features:
Ultra-Bright LED Engine – 50,000-lumen output with high CRI
IP65 Weatherproof Rating – Built for outdoor and indoor applications
Precision Framing System – Motorized shutters for sharp beam shaping
Advanced Color Mixing – CMY + CTO and full pixel control for rich, vibrant hues
Dynamic Effects – Rotating and static gobos, animation wheel, and frost filters
Multiple Control Options – DMX, RDM, Art-Net, and sACN compatibility
Energy-Efficient & Quiet – Ideal for noise-sensitive environments
Why Choose the Elation Proteus Odeon?
The Proteus Odeon is designed for lighting designers, event planners, and production professionals who need a powerful, durable, and versatile LED luminaire. Its ability to operate in any weather condition while delivering stunning visuals makes it a go-to choice for the most demanding applications.
Specs
SOURCE
- High Efficiency 850W 6,500K Variable CRI White LED Engine
-
LED Life Expectancy: 30,000 hours*
- Lab-tested; actual lifespan may vary based on environmental conditions, power/voltage fluctuations, usage patterns, control settings, and dimming levels.
PHOTOMETRIC DATA
- Total Lumen Output: 32,000 Lumens @ CRI 80
- TruTone Variable CRI: Up to CRI 93
- Zoom Range: 5.5° - 50°
- Beam Angle: 4.9° - 48.9°
- Field Angle: 5.7° - 53°
EFFECTS
- Motorized Zoom
-
Full Blackout Framing System:
- 4 Rotating Framing Blades
- +/- 45° Framing Indexing
-
Animation Effects:
- Full 360° Bi-Directional Animation Wheel
-
Prism Effects:
- 4-Facet and Linear Rotating Prisms
-
Frost Filters:
- 2 Variable Frost Filters (Light and Wash)
-
Additional Features:
- Internal Color, Framing, Prism, and Frost Macros
- Motorized Iris with Variable Pulse Effects
- Variable 16-bit Dimming Curve Modes
- High-Speed Electronic Shutter and Strobe
- DMX Controllable LED Refresh Rate
-
Pan/Tilt Movement:
- Pan: 540° / 630°
- Tilt: 250°
COLOR
- CMY Color Mixing
- Linear CTO Color Correction
- 5 Dichroic Colors, including UV Filter
GOBOS
-
3 Gobo Wheels:
- Wheel 1: 6 Rotating Gobos
- Wheel 2: 7 Rotating Gobos
- Wheel 3: 7 Static Gobos
CONTROL & CONNECTIONS
- DMX Channel Modes: 4
-
Advanced Control Features:
- 16-bit Pan, Tilt, and Dimming Control
- Motorized Focus with Auto-Focus Presets
- DMX, RDM, Art-NET, sACN Protocol Support
-
User Interface:
- (6) Button Touch Control Panel
- Full-Color 180° Reversible LCD Menu Display
- Hibernation Mode (Power Save)
-

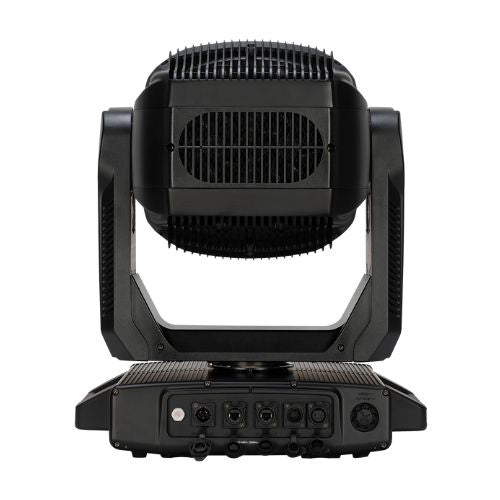

Connectivity:
- IP65 Locking 5-pin XLR DMX In/Out
- IP65 Locking RJ45 Ethernet In/Out
- IP65 Locking Power In
- Wired Digital Communication Network
SIZE & WEIGHT
- Length: 18.41 in (467.66mm)
- Width: 14.57 in (370mm)
- Height: 27.2 in (692mm)
- Weight: 97.7 lbs. (43.4 kg)
ELECTRICAL
- Voltage: AC 120-240V 50/60Hz
- Max Power Consumption: 1500W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- BTU/hr (+/- 10%): 3,239.5
Included Items:

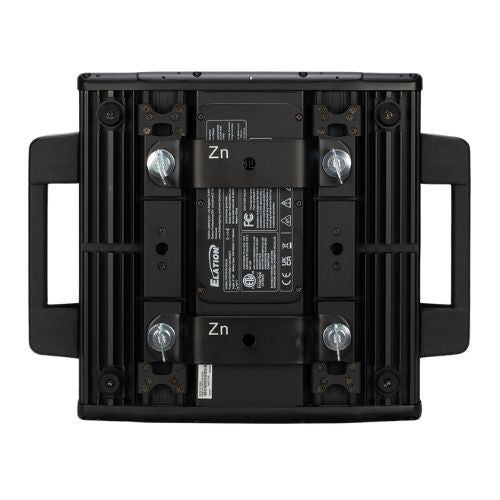

Omega Brackets (x2)
IP65 Rated RJ45 Data Cable (Fixture-to-Fixture Interconnect Use Only!)
IP65 Rated Locking Power Cable
