MA Lighting grandMA3 Compact

Compact Yet Powerful Lighting Console for Professionals

The grandMA3 compact console delivers the full power of the grandMA3 system in a lightweight, transport-friendly design. Ideal for owner-operators, touring professionals, and tech-desk use, this console offers intuitive control, advanced programming features, and seamless integration with grandMA2 and grandMA3 software.

Designed for small to medium-sized entertainment lighting applications, the grandMA3 compact features a large multi-touch monitor, dual encoders, and an optimized command area that mirrors the layout of larger models. With 40 physical playbacks, 16 assignable X-keys, and a dedicated master area, this console provides fast, efficient access to all key functions.

Scalable from 8,192 to 250,000 parameters with additional grandMA3 processing units, the grandMA3 compact ensures future-proof expansion while maintaining intuitive control and rapid workflow enhancements.

Key Features:

Compact & Portable – Lightweight design for easy transport and quick setup.
8,192 Control Parameters (Expandable to 250,000) – Scalable for productions of all sizes.
40 Physical Playbacks – Extensive control with assignable playback options.
Large Multi-Touch Monitor – Fast, intuitive access to functions and controls.
Dual Encoders & Custom Feature Mapping – Intuitive navigation and customizable control.
Motorized RGB Faders – Color-changing light pipes for better visual feedback.
GrandMA2 & GrandMA3 Software Compatibility – Seamless transition between systems.
Optimized Command Area – Faster programming and live control enhancements.
GDTF (General Device Type Format) Support – Ensures accurate fixture control as intended by manufacturers.

Why Choose the grandMA3 Compact Console?

The grandMA3 compact console is the perfect choice for professionals seeking powerful, intuitive lighting control in a smaller footprint. With its scalable architecture, advanced programming features, and seamless grandMA software compatibility, this compact console is ready for any production challenge.

• Parameters: 8192 (HTP/LTP)
• Parameters Mode2: 4096 (HTP/LTP)
• Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
• Power: max. 250 VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions:
  • 661 x 429 x 160 mm / 26 x 17 x 7 in
    (width x depth x height, folded)
  • 661 x 563 x 325 (max. 410) mm / 26 x 23 x 13 (max. 17) in
    (width x depth x height, unfolded)
• Net weight: 16 kg / 36 lbs

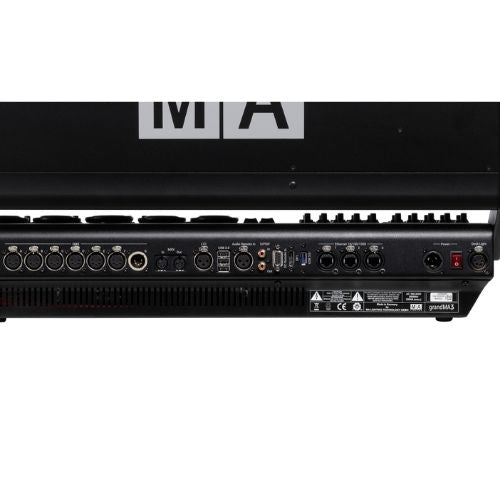

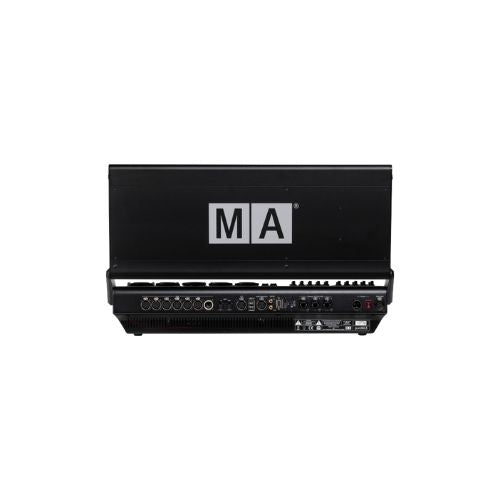

• Connectors:
  • 1 x powerCON TRUE1
  • 3 x etherCON/RJ45
  • 6 x DMX512-A Out (5pin XLR female)
  • 1 x DMX512-A In (5pin XLR male)
  • 1 x MIDI In (5pin DIN female)
  • 1 x MIDI Out (5pin DIN female)
  • 1 x Linear Timecode (3pin XLR female)
  • 1 x Audio In (3pin XLR female)
  • 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
  • 1 x DisplayPort 1.2 for external screens
  • 2 x S/PDIF In and Out
  • 3 x USB 2.0 (type A)
  • 2 x USB 3.0 (type A)
  • 1 x LED desk light (4pin XLR female)

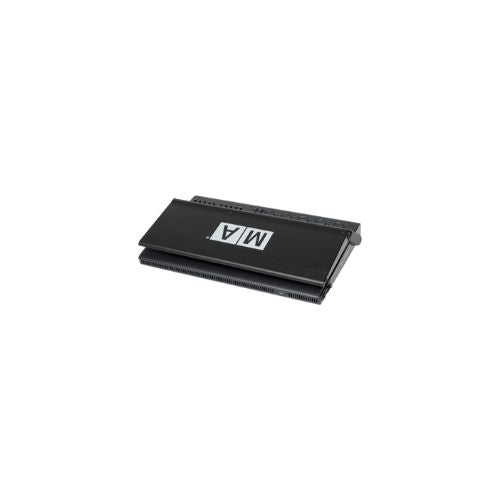

• 1x Dust cover grandMA3 Compact
• 1x MA LED Desk Light
• 1x MA Magnetic Plate
• 1x Power Cable
• 1x User Manual
• Optional: External Touchscreen for extended control
